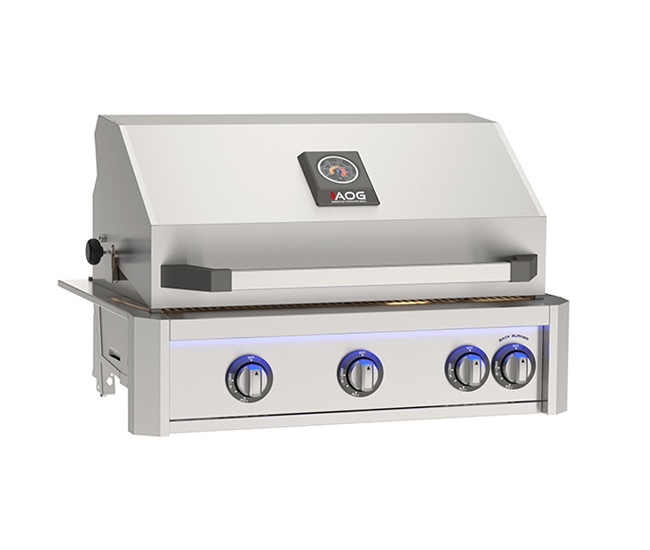

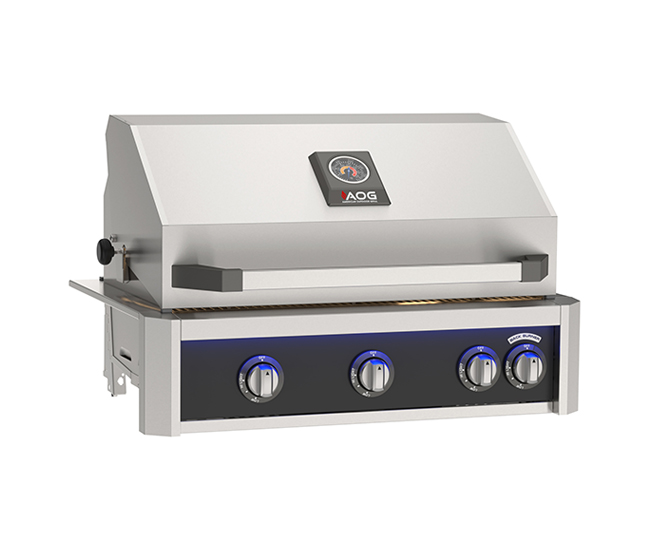

American Outdoor Grill (AOG) 30-Inch L Series Built-In Grill With Infrared Backburner and Rotisserie Kit delivers premium grilling performance for outdoor kitchens, featuring a 540 sq. in. primary cooking surface and 45,000 BTUs of primary heat. The L Series is designed to stand out after sunset with interior halogen lights and an external multi-color LED light bar (remote included), along with signature details like Diamond Sear™ 304 stainless steel cooking grids, 304 stainless steel tubular burners, and vaporizer panels for even heat distribution and reduced flare-ups.
For added versatility, this model includes a 12,000 BTU infrared backburner and a rotisserie kit (spit rod, forks, and motor) for slow-roasting. A spring-assisted hood, Flame Thrower ignition system, and an easy-to-read analog thermometer complete the everyday functionality. Built-in cut-out requirements are 30½" W x 19½" D x 8½" H (with a 34½" counter overhang cut-out width). Note: All L-Series gas grills require 120 Volt AC power.
*All grills include a gas conversion kit
Product Details
Backburner BTU's
12,000
Cut Out Dimensions
30-inch W x 19-inch D x 8-inch H
Dimensions
33 7/8-inch W x 25 7/8-inch D x 22 1/4-inch H
Ignition Type
Flame Thrower ignition system
Material
304 Stainless Steel
Number of Burners
3 Burners
Primary Burner BTU's
45,000
Primary Cooking Surface
540 sq. in.
WiFi/Bluetooth Enabled
No
American Outdoor Grill Warranty
Lifetime Warranty
American Outdoor Grill stainless steel housings and stainless steel burners are warranted for as long as the original purchaser owns the grill.
Fifteen-Year Warranty
American Outdoor Grill Diamond Sear stainless steel cooking grids are warranted for fifteen years.
Ten-Year Warranty
American Outdoor Grill valves, controls, and manifolds are warranted for ten years.
Three-Year Warranty
American Outdoor Grill backburners, rotisserie kits, vaporizer panels, and exterior Glass Fiber Reinforced Concrete (GFRC) grill island systems are warranted for three years.
Two-Year Warranty
American Outdoor Grill ignition systems, excluding batteries, electronic components, grill parts, and accessories, including side burners, motors, and thermometers, are warranted for two years.
Refer to the applicable American Outdoor Grill owner’s manual and full manufacturer warranty for complete coverage details, exclusions, and warranty claim requirements.
All grills by American Outdoor Grill are proudly manufactured in the US under the highest standards, to deliver world-class products that enrich American families.
