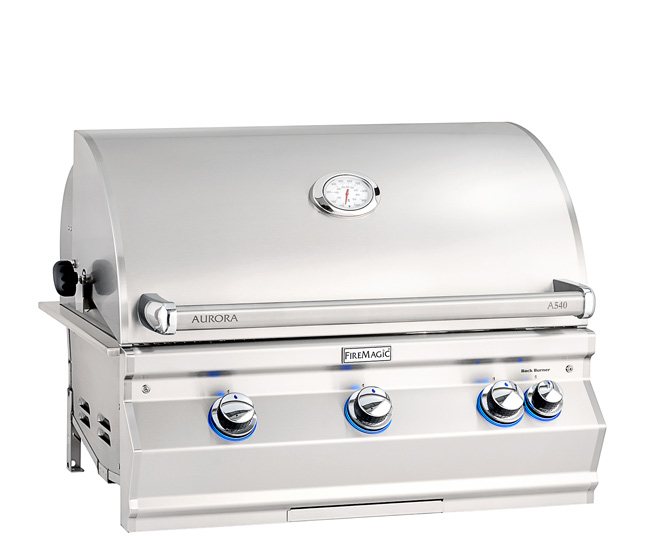

The Fire Magic A540i-7 30-Inch Aurora Built-In Gas Grill combines premium outdoor cooking performance with a compact design suited for custom grill islands. Constructed from heavy-gauge 304 stainless steel, it features a 30-inch x 18-inch primary cooking surface with 540 square inches of grilling space and a 30-inch x 8-inch adjustable warming rack that adds 240 square inches. An angled analog thermometer in the hood provides clear temperature readings up to 1,000°F.

Three cast stainless steel “E” burners produce a combined 63,000 BTUs, providing independent heat control across multiple cooking zones. Fire Magic’s patented Diamond Sear cooking grids increase contact with food for efficient heat transfer and defined sear marks, while heavy-gauge stainless steel Flavor Grids promote even heating, reduce flare-ups, and vaporize drippings to enhance flavor. Additional conveniences include back-lit control knobs, interior halogen lighting, a spring-assisted 90-degree hood, and reliable Push-to-Light hot surface ignition.

Designed for built-in outdoor kitchens, the A540i requires a 32-inch wide x 19½-inch deep x 11½-inch high cutout and is available for natural gas or propane. A 120VAC plug-in electrical connection is required to operate the ignition, illuminated controls, and interior lights, so a properly grounded outdoor GFCI receptacle must be located near the grill. No 240-volt circuit is required.

Product Details
Backburner BTU's	N/A
Cut Out Dimensions	32"W x 19 1/2"D x 11 1/2"H
Ignition Type	Push-to-light hot surface
Material	Stainless Steel
Number of Burners	3 Main Burners
Primary Burner BTU's	63,000
Primary Cooking Surface	540 sq. inches (30" x 18")
Warming Rack Surface	240 sq. inches (24" x 8")
Weight	200 lbs.
WiFi/Bluetooth Enabled	No

Diamond Sear Cooking Grids

Superior cooking grids that are optimally shaped to evenly distribute heat from the burners to the cooking surface.

Flavor Grids

Top of the line flavor grids allow heat to rise unobstructed and flavors food while protecting the burners from grease and flare ups.

Cast Stainless Steel Burners

Massive burners cast in pure 304 stainless steel boast 31,000 BTUs each and are covered by our lifetime warranty.

Backlit Comfort-Grip Knobs

Mirror-polished knobs feature comfort touch grips and flame icons for convenience and safety.

Analog Thermometer

Polished heavy-duty analog thermometer embedded in the hood of your grill so you can check the temperature without losing any heat to opening.

Aurora Backburner

Optional stainless steel backburner and a complete rotisserie kit with motor, solid spit rods, and a polished stainless steel cover for protection.

Aurora Halogen Lights

Powerful interior halogen lights (12V) for enhanced evening grilling all year long..

Hot Surface Ignition System

The most advanced and reliable lighting system available. Hot surface always lights your burners where others might fail.

Fire Magic Warranty

Lifetime Warranty
Cast stainless steel burners, Choice stainless steel U-shaped burners, Fire Magic Diamond Sear cooking grids, stainless steel rod cooking grids, and stainless steel housings are warranted for as long as you own your grill.

Fifteen-Year Warranty
Brass valves, inner liners, manifold assemblies, porcelain components including ovens and barbecue faces, and backburner assemblies are warranted for fifteen years. Ignition systems are excluded from backburner assembly coverage.

Ten-Year Warranty
Electric grill stainless steel cooking grids and housings are warranted for ten years. Gourmet griddles and pizza ovens are also warranted for ten years, excluding ignition systems and electronic parts.

Five-Year Warranty
Flavor Grids, infrared burners installed in the grill, and stainless steel charcoal grills are warranted for five years. Charcoal pans, charcoal grids, thermometers, and ash trays are warranted for one year.

Three-Year Warranty
Fire Magic side burners, Electric Outdoor Induction Cookers, and all other Fire Magic grill, gourmet griddle, and pizza oven components are warranted for three years, excluding ignition systems and electrical parts.

One-Year Warranty
Fire Magic ignition systems, excluding batteries, electronic components including lights and thermometers, and grill, gourmet griddle, and pizza oven accessories are warranted for one year.

Refer to the applicable Fire Magic owner’s manual and full manufacturer warranty for complete coverage details, exclusions, and warranty claim requirements.
