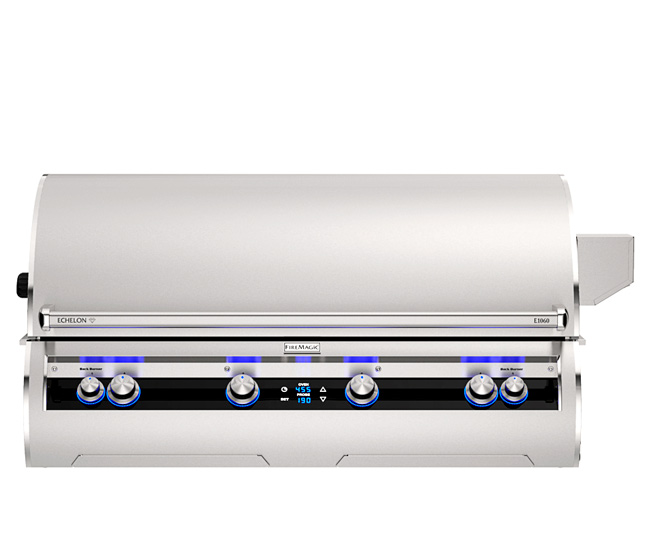

The Fire Magic E1060i 48-Inch Echelon Diamond Built-In Gas Grill with Digital Thermometer, model family E1060i-9, is designed for large outdoor kitchens and serious entertainers who want maximum cooking space, powerful heat, and advanced temperature monitoring. Constructed from heavy-gauge 304 stainless steel, this four-burner grill provides a massive 48-inch x 22-inch primary cooking surface with 1,056 square inches of grilling space, along with a 48-inch x 8-inch adjustable warming rack that adds 344 square inches for indirect cooking and keeping food warm.

Four cast stainless steel “E” burners produce a combined 112,000 BTUs, while Fire Magic’s heavy-gauge stainless steel Flavor Grids distribute heat evenly, reduce flare-ups, and vaporize drippings to enhance flavor. Patented Diamond Sear cooking grids increase contact with food for efficient heat transfer and defined sear marks. The black glass control panel features a digital touchscreen thermometer with Bluetooth or Wi-Fi connectivity for monitoring grill and meat temperatures, while two recessed backburners deliver a combined 22,000 BTUs for the included heavy-duty rotisserie system. Back-lit control knobs, angled interior halogen lights, and Push-to-Light hot surface ignition complete the premium cooking experience.

Designed for built-in installation, the E1060i requires a 50-inch wide x 23½-inch deep x 11½-inch high cutout and is available in natural gas or propane configurations. Select models can be ordered with a factory-installed infrared sear burner replacing the left standard burner, while an optional Magic View Window allows food to be monitored without lifting the hood. The ignition, digital thermometer, lighting, and rotisserie systems require a nearby 120VAC, 15-amp minimum grounded GFCI receptacle with a weatherproof in-use cover. The grill connects through a standard grounded three-prong plug, so no 240-volt or specialty plug is required; the electrical outlet is not included.

Product Details
Backburner BTU's	22,000
Cut Out Dimensions	50”W x 23 1/2"D x 11 1/2”H
Ignition Type	Push-to-light hot surface
Material	Stainless Steel
Number of Burners	4 Main Burners +2 Infrared Backburner
Primary Burner BTU's	112,000
Primary Cooking Surface	1056 sq. inches (48" x 22")
Warming Rack Surface	384 sq. inches (48" x 8")
Weight	350 lbs.
WiFi/Bluetooth Enabled	Yes

Diamond Sear Cooking Grids

Superior cooking grids that are optimally shaped to evenly distribute heat from the burners to the cooking surface.

Flavor Grids

Top of the line flavor grids allow heat to rise unobstructed and flavors food while protecting the burners from grease and flare ups.

Cast Stainless Steel Burners

Massive burners cast in pure 304 stainless steel boast 31,000 BTUs each and are covered by our lifetime warranty.

Backlit Comfort-Grip Knobs

Smooth, seamless knobs feature comfort touch grips and flame icons for convenience and safety.

Digital Thermometer

Oven and meat probe sensors provide accurate readings that you can monitor from your smartphone, thanks to its connectivity features.

Infrared Backburner

Potent infrared backburner provides additional BTUs for restaurant-quality rotisserie grilling. Includes a protective stainless steel cover.

Angled Halogen Lights

Powerful interior halogen lights angled towards your food allow for nighttime grilling all year long.

Easy-Glide Drip Trays

Mounted on caster wheels for effortless operation, the new and improved drip trays make cleaning your grill a breeze.

Fire Magic Warranty

Lifetime Warranty
Cast stainless steel burners, Choice stainless steel U-shaped burners, Fire Magic Diamond Sear cooking grids, stainless steel rod cooking grids, and stainless steel housings are warranted for as long as you own your grill.

Fifteen-Year Warranty
Brass valves, inner liners, manifold assemblies, porcelain components including ovens and barbecue faces, and backburner assemblies are warranted for fifteen years. Ignition systems are excluded from backburner assembly coverage.

Ten-Year Warranty
Electric grill stainless steel cooking grids and housings are warranted for ten years. Gourmet griddles and pizza ovens are also warranted for ten years, excluding ignition systems and electronic parts.

Five-Year Warranty
Flavor Grids, infrared burners installed in the grill, and stainless steel charcoal grills are warranted for five years. Charcoal pans, charcoal grids, thermometers, and ash trays are warranted for one year.

Three-Year Warranty
Fire Magic side burners, Electric Outdoor Induction Cookers, and all other Fire Magic grill, gourmet griddle, and pizza oven components are warranted for three years, excluding ignition systems and electrical parts.

One-Year Warranty
Fire Magic ignition systems, excluding batteries, electronic components including lights and thermometers, and grill, gourmet griddle, and pizza oven accessories are warranted for one year.

Refer to the applicable Fire Magic owner’s manual and full manufacturer warranty for complete coverage details, exclusions, and warranty claim requirements.
